Tracking-Health Detector

A daily watchdog that flags clients whose Rose widget or form-tracking is broken. Surfaced in the backoffice as a colored badge next to the client name on the Clients page, and as a "needs attention" filter.

What it detects

Widget detection in the Rose widget is brittle — multiple strategies (DataLayer, CTAPageForm, ThankYouPage, HubSpot, NetworkObserver, Superform, PostMessage) break silently when a client changes their GTM container, swaps form provider, restructures CTA pages, or tightens cookie consent. The detector watches per-client signals from mv_client_stats_30d and session_events and emits a badge when something looks wrong.

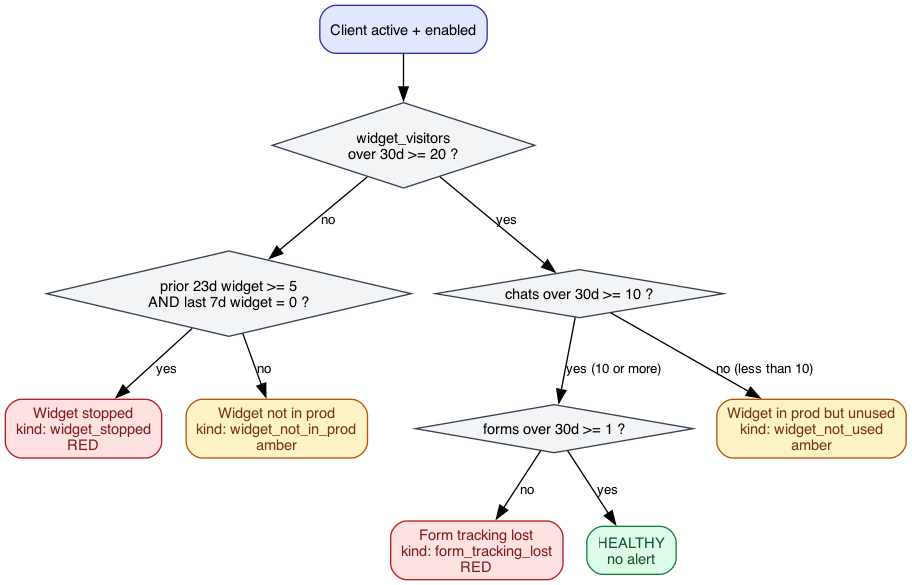

Decision tree

The detector walks each enabled client (client_type IN ('client','onboarding','test')) top-down through this tree. Each leaf is exactly one outcome — no client gets two badges.

flowchart TD Start[Client active + enabled]:::start --> Q1{"widget_visitors over 30d >= 20?"} Q1 -- "no" --> Q2{"prior 23d widget >= 5<br/>AND last 7d widget = 0?"} Q2 -- "yes" --> WS["Widget stopped<br/><b>widget_stopped</b><br/>RED"]:::red Q2 -- "no" --> WNIP["Widget not in prod<br/><b>widget_not_in_prod</b><br/>amber"]:::amber Q1 -- "yes" --> Q3{"chats over 30d >= 10?"} Q3 -- "no" --> WNU["Widget in prod but unused<br/><b>widget_not_used</b><br/>amber"]:::amber Q3 -- "yes" --> Q4{"forms over 30d >= 1?"} Q4 -- "no" --> FTL["Form tracking lost<br/><b>form_tracking_lost</b><br/>RED"]:::red Q4 -- "yes" --> OK["HEALTHY<br/>no alert"]:::ok classDef start fill:#eef,stroke:#446,color:#222 classDef red fill:#fee2e2,stroke:#b91c1c,color:#7f1d1d classDef amber fill:#fef3c7,stroke:#b45309,color:#78350f classDef ok fill:#dcfce7,stroke:#15803d,color:#14532d

Outcomes

Outcome Color Meaning What to do
Widget not in prod (widget_not_in_prod) 🟠 amber Widget barely fires (< 20 distinct visitors over 30d) and there's no prior widget activity to compare to. Either never installed, blocked by a CMP, or the loader is broken. Check the client's site for the Rose loader snippet. Verify the loader URL is reachable. Check CMP / cookie-consent gating.
Widget stopped (widget_stopped) 🔴 red Widget was firing (>= 5 distinct visitors in the prior 23-day window) and is now silent (0 in the last 7 days). Real regression. Check the site — did the client redeploy? GTM container change? Loader URL break?
Widget in prod but unused (widget_not_used) 🟠 amber Widget loads at scale (>= 20 visitors / 30d) but fewer than 10 chats started in 30 days. Could be a content/copy issue, chat-init broken, wrong widget placement, or bot traffic. Open the site in an incognito browser, verify the widget actually opens and responds. Check copy / trigger config.
Form tracking lost (form_tracking_lost) 🔴 red Real chats happened (>= 10 over 30d) but zero client_form_submitted events were detected. Form-detection strategies broken on the client's site. Inspect form_tracking_pages config. Check whether GTM container changed, form provider was swapped, or detection strategies were disabled.
Healthy — Widget loads, chats happen, forms are tracked. No badge. —

Inputs

Symbol Source Definition
widget_visitors_30d mv_client_stats_30d.widget_visitors Distinct person_id who saw a widget_impression event on any of the client's domains in the last 30d, widget_displayed_at > 0, duration_s > 10
prior 23d widget session_events aggregate Distinct person_id with widget_impression over days -30 to -7
last 7d widget session_events aggregate Distinct person_id with widget_impression over days -7 to 0
chats_30d mv_client_stats_30d.conversation_visitors Distinct visitors who started a chat in the last 30d
forms_30d mv_client_stats_30d.form_submits_total Total client_form_submitted events over 30d across the client's root_domain

Demo + former + disabled clients are excluded from detection.

Why these thresholds

  • 20 widget_visitors / 30d: real production tier starts at ~100 visitors. Below 20 is dev / preprod / staff loads — not meaningfully in production. The boundary was picked from the actual visitor distribution (next tier up was ~22 / 97 visitors).
  • prior 23d ≥ 5 + last 7d = 0 for widget_stopped: splits baseline window from recent window so the check isn't self-contradicting. False-positive probability at the floor (P(zero in 7d | prior rate 5/23) ≈ 22%) — noisy but catches low-volume regressions worth investigating.
  • chats ≥ 10 for form_tracking_lost: at a 10% chat-to-form conversion rate, expected forms from 10 chats is 1.0 → P(zero) = e^(-1) ≈ 37%. Higher than ideal but tight enough to filter out 1-or-2-chat noise while still catching small-onboarding regressions.

How it runs

  • pg_cron job detect-tracking-health rebuilds public.tracking_health_alerts daily at 03:00 UTC, after mv_client_stats_30d refreshes at 02:00 UTC.
  • Truncate-and-insert: contents always reflect today's verdict. No history table yet.
  • Manual rerun: SELECT public.detect_tracking_health(); (requires service_role or postgres).

Where to look in code

  • supabase/migrations/20260522131345_add_tracking_health_alerts.sql — alert-table schema
  • supabase/migrations/20260522131402_add_tracking_health_cron.sql — detection function + cron schedule
  • supabase/migrations/20260522131510_extend_get_client_stats_30d_with_tracking_health.sql — RPC extension exposing tracking_health_signals
  • frontend/client-backoffice/src/components/clients/clientColumns.tsx — badge rendering
  • frontend/client-backoffice/src/lib/clientsAttention.ts — needs-attention integration
